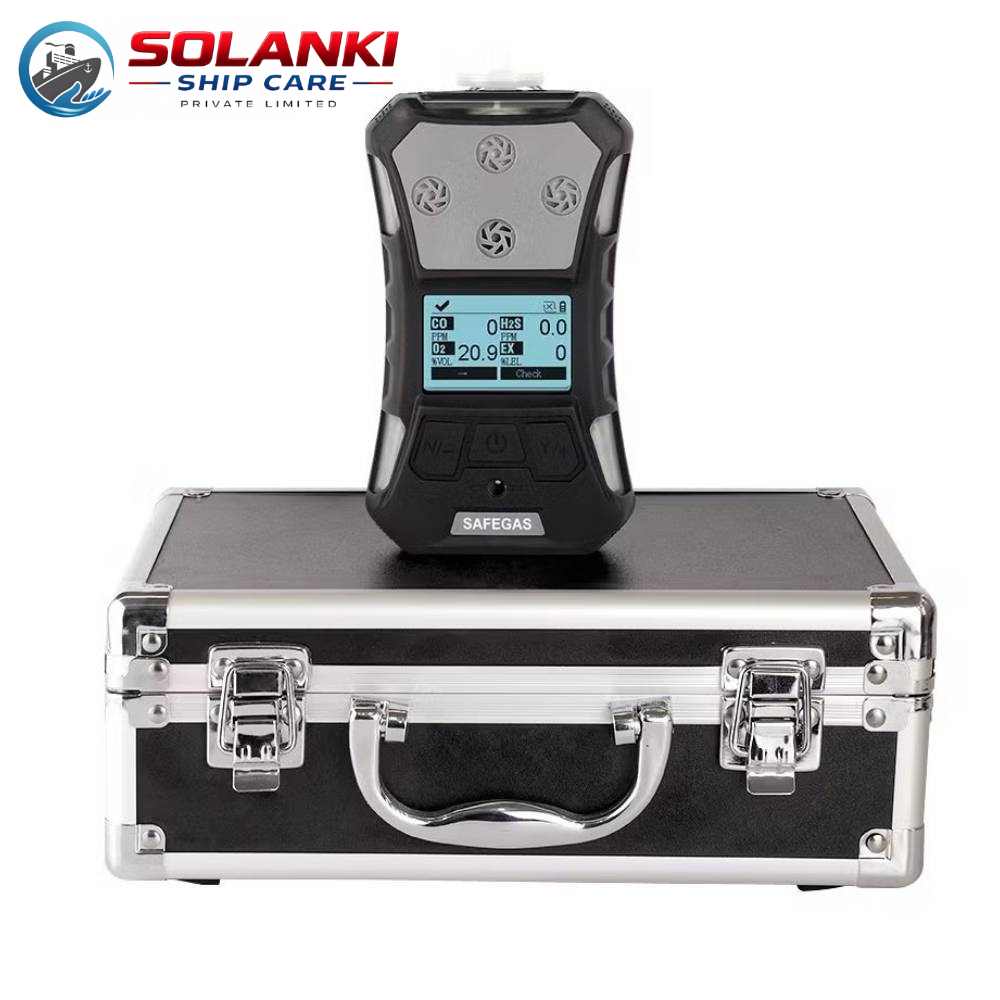

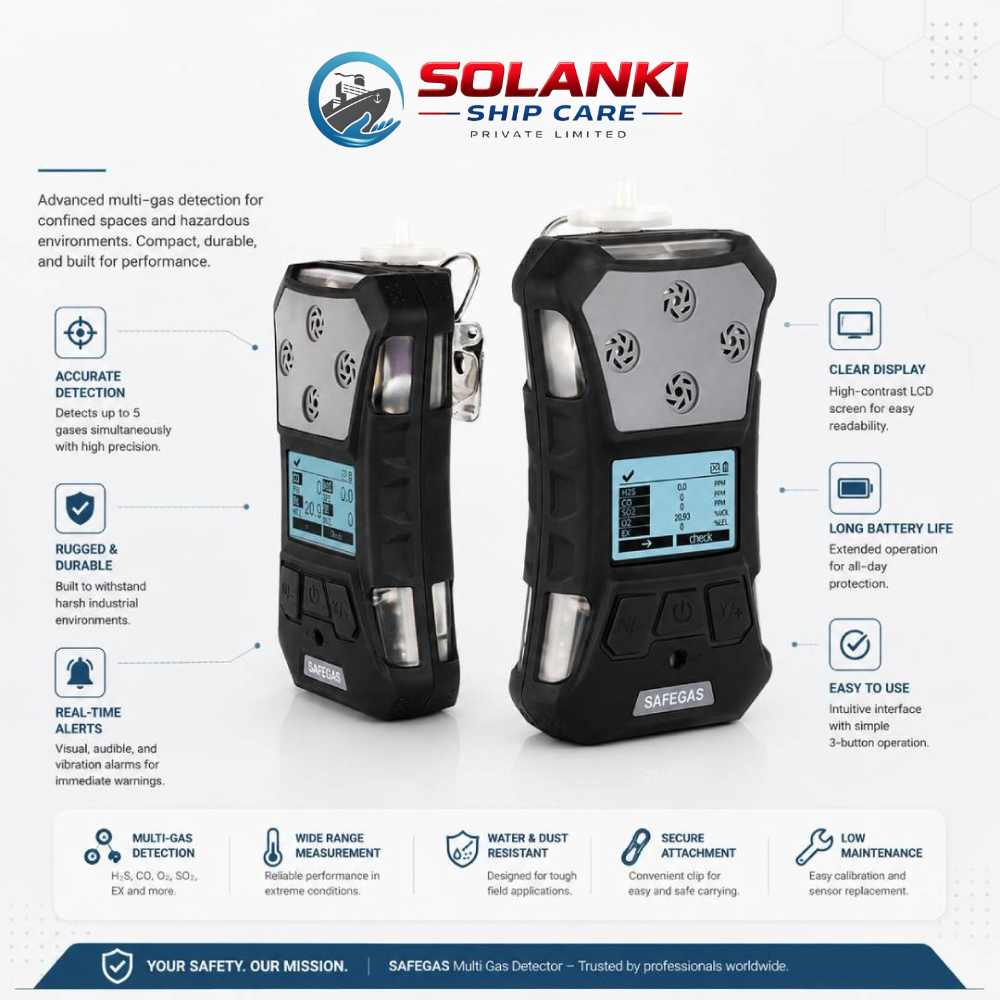

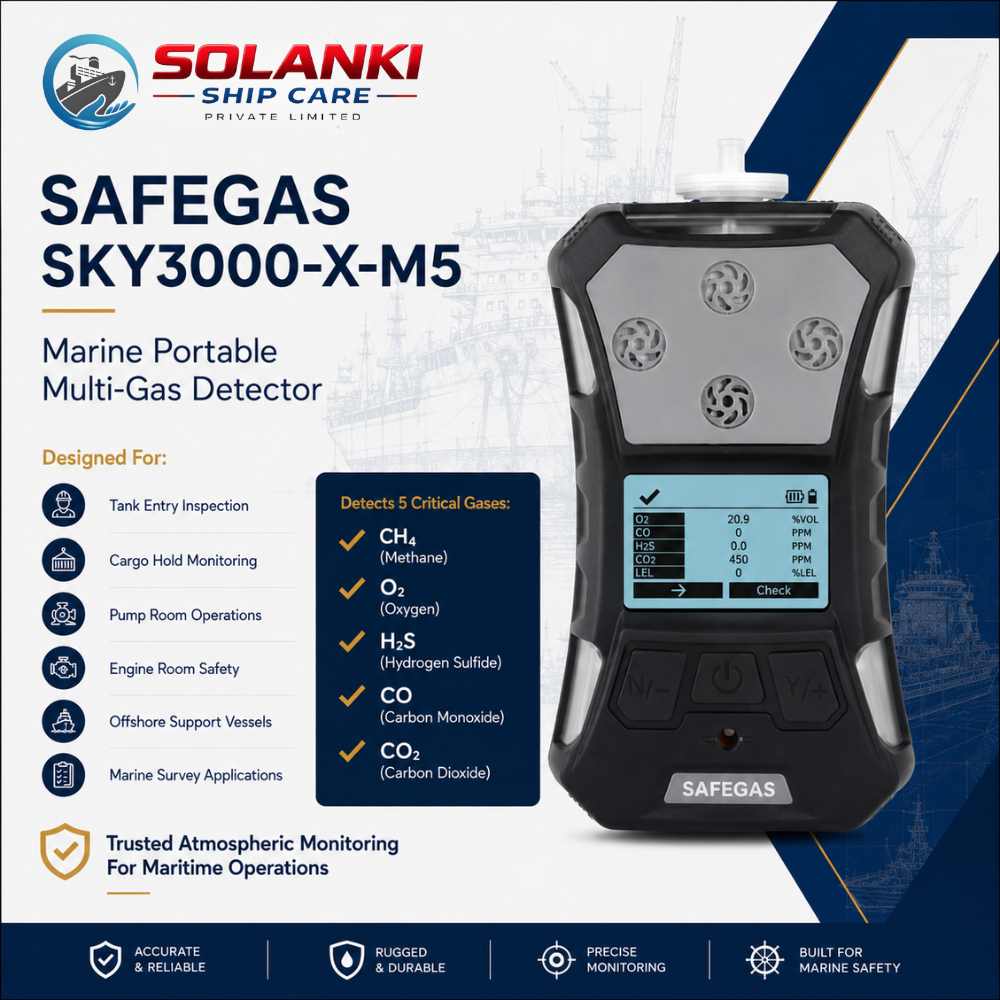

SAFEGAS SKY3000-X-M5 - Portable Pumping Multi-Gas Detector
.jpg)
.jpg)
.jpg)
Product Overview
The SAFEGAS SKY3000-X-M5 is a high-performance portable pumping multi-gas detector designed for continuous monitoring of hazardous gases in industrial and confined space environments. Engineered with advanced sensing technology and an integrated suction pump, the SKY3000-X-M5 can simultaneously detect up to 5 or 6 gases, providing accurate real-time monitoring of combustible, toxic, and oxygen-related gas hazards. Its rugged construction, intelligent safety functions, and wireless communication capabilities make it an ideal solution for oil & gas, marine, petrochemical, utilities, wastewater treatment, chemical plants, and industrial safety applications.
The SKY3000-X-M5 is designed to deliver maximum worker protection through a combination of audible, visual, and vibration alarms together with advanced safety features such as man-down detection, STEL and TWA monitoring, pump fault alarms, and real-time concentration display. The detector continuously records gas readings and alarm events, allowing users to export data directly to a PC without requiring additional software. Its large graphical LCD display automatically rotates for easier viewing and provides clear visibility of gas concentration levels, alarm conditions, and operational status.
Built for harsh industrial environments, the detector features an IP67-rated enclosure with water and dust resistance, anti-static protection, and a rugged housing capable of withstanding drops up to 3 meters. The integrated lithium rechargeable battery provides more than 15 hours of continuous operation in pumping mode, ensuring reliable performance during long work shifts and confined space inspections. Optional Bluetooth, LoRa, and wireless communication features allow safety personnel to monitor gas conditions remotely and receive alarm notifications in real time.
With IECEx, ATEX, EMC, and CE certifications, the SKY3000-X-M5 meets international safety requirements for operation in hazardous explosive atmospheres. Its modular sensor architecture supports thousands of gas combinations and multiple sensing technologies including electrochemical, catalytic combustion, infrared (NDIR), and PID sensors, allowing the detector to be customized for a wide range of industrial applications.
Key Features
-
Integrated Pump Sampling System
Built-in suction pump enables fast and reliable remote gas sampling for confined space inspections and industrial monitoring.
-
Multi-Gas Detection
Supports simultaneous monitoring of up to 6 gases using electrochemical, catalytic, infrared, and PID sensor technologies.
-
Advanced Safety Protection
Includes:
- Man-Down Alarm
- STEL Alarm
- TWA Alarm
- High & Low Alarm
- Pump Failure Alarm
- Battery Low Alarm
- Sensor Fault Alarm
- Audible, Visual & Vibration Alerts
-
Rugged Industrial Design
IP67-rated waterproof and dustproof housing with 3-meter drop resistance for demanding industrial environments.
-
Wireless Monitoring
Optional Bluetooth and LoRa communication allow remote monitoring of gas readings and alarm status.
-
Intelligent Data Logging
Stores up to 100,000 records with adjustable intervals and direct export to PC for compliance reporting and analysis.
Standard 5-Gas Configuration (M5)
| Gas Type | Detection Range | Resolution |
|---|---|---|
| Oxygen (O₂) | 0 – 30% VOL | 0.1% VOL |
| Combustible Gas (LEL) | 0 – 100% LEL | 1% LEL |
| Carbon Monoxide (CO) | 0 – 1000 ppm | 1 ppm |
| Hydrogen Sulfide (H₂S) | 0 – 100 ppm | 1 ppm |
| Sulfur Dioxide (SO₂)* | 0 – 20 ppm / Optional | 0.1 ppm |
*Gas configuration can vary depending on customer requirements and sensor selection.
Technical Specifications
| Gas Type | Oxygen, Combustible gas, Carbon monoxide, Hydrogen sulfide |
|---|---|
| Measure Range | 0–30% VOL, 0–100% LEL, 0–1000 PPM, 0–100 PPM |
| Resolution | 0.01% VOL, 1% LEL, 1 PPM, 1 PPM |
| Response Time | ≤ 30 seconds |
| Precision | ≤ ±2% F.S (except for special gases) |
| Auto Test on Power-On | Includes reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key; concentration value auto-converted by system |
| Display | Monochrome graphics (160 × 96), screen can be automatically flipped |
| Backlight | Backlight time can be manually set; turns on automatically when an alarm is issued |
| Data Record | Stores 100,000 sets of data; storage interval adjustable from 5 to 3600 seconds; data exportable via data cable |
| Alarm | 95 dB buzzer (@30 cm), vibration alarm and flashing red LED, alarm status indication on screen, alarm latched; diagnostic alarm, battery undervoltage alarm, pump block alarm, man-down alarm with early warning and optional real-time remote Bluetooth notification |
| Battery | 3.7V rechargeable lithium battery, capacity 2200 mAh |
| Working Hours | More than 8–10 hours in continuous pumping mode |
| Charger | Travel charger with DC interface; charging time ≥ 4 hours |
| Certification | IECEx/ATEX (II 1G Ex ia IIC T4), CNEX: Ex ia IIC T4 Ga |
| EU Certification | 2004/108/EC (EMC), 94/9/EC (ATEX), CE |
| Working Temperature | -20 °C to +50 °C |
| Humidity | 0–90% RH (no condensation) |
| Environmental Pressure | 86–106 kPa |
| Size | 157 × 84.5 × 59.5 mm (including back clip/water trap filter) (L × W × H) |
| Weight | 365 g (including battery, belt clip and filter) |
